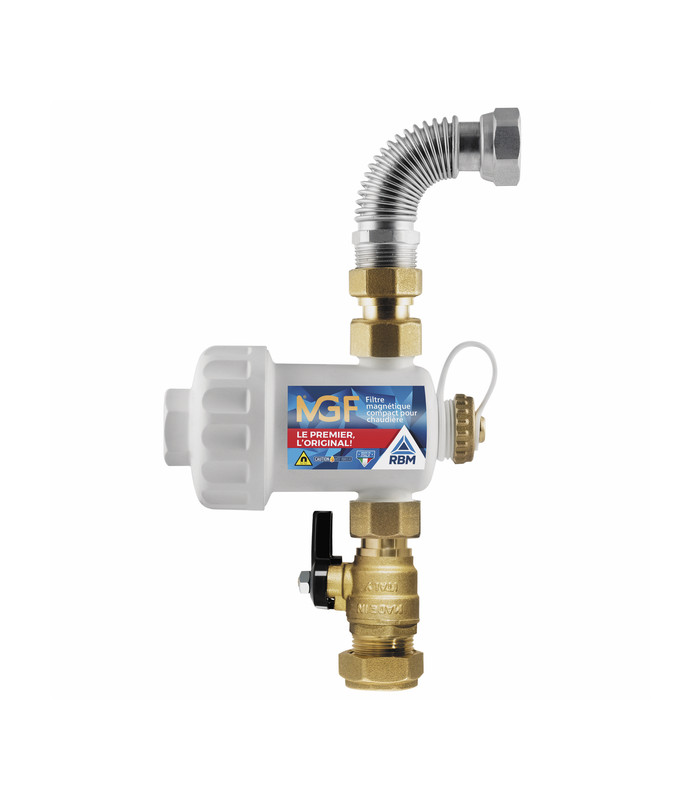

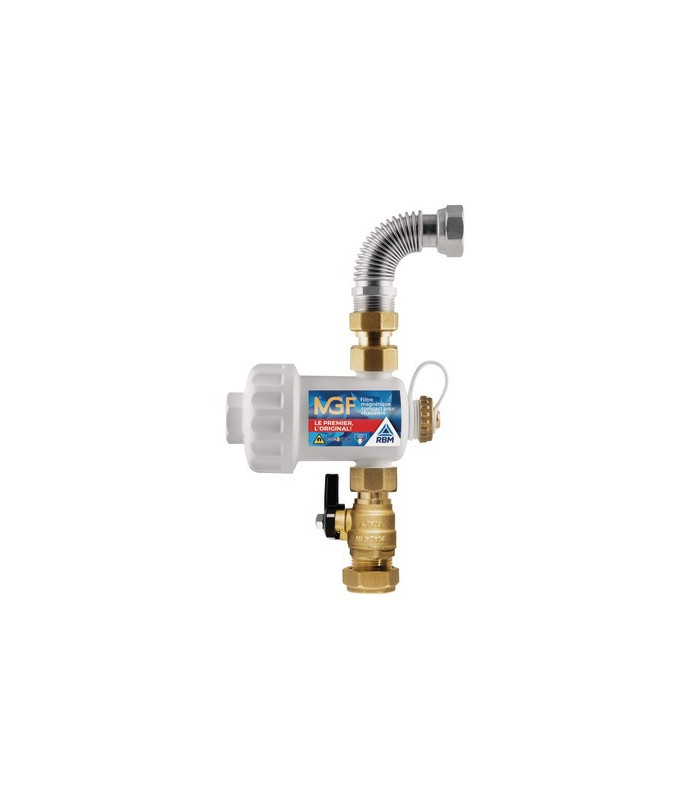

Magnetic filter MGF white with valve and compression fitting 22 - RBM : 37010510
The compact magnetic system filter MGF white for wall-mounted boilers represents a great solution to solve plant problems due to particle presence, especially rust and sand that are formed due to corrosion during the normal operation of a system.

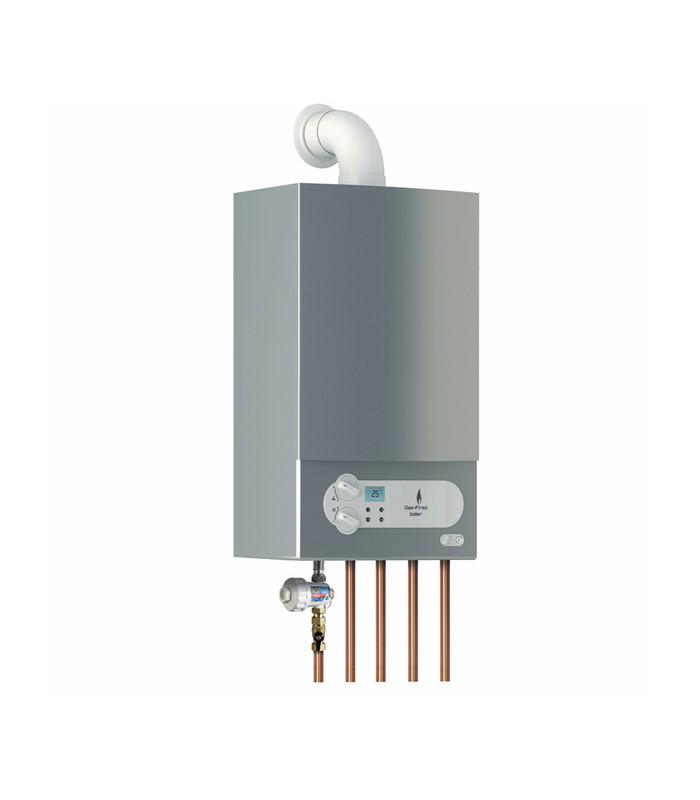

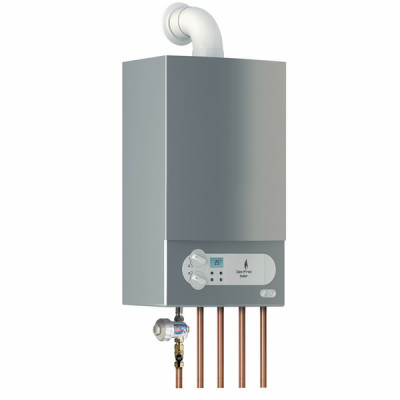

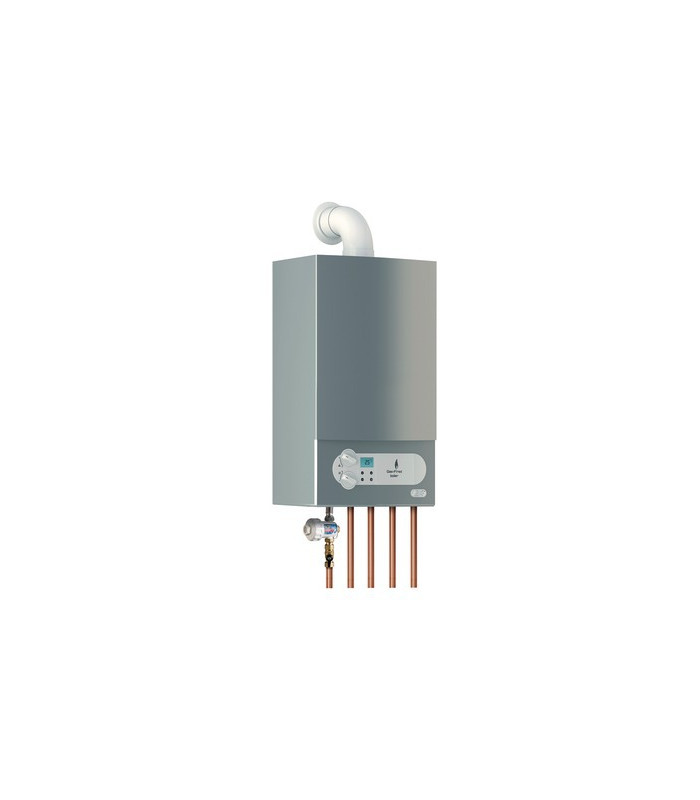

Compact magnetic system filter for wall-mounted boilers.

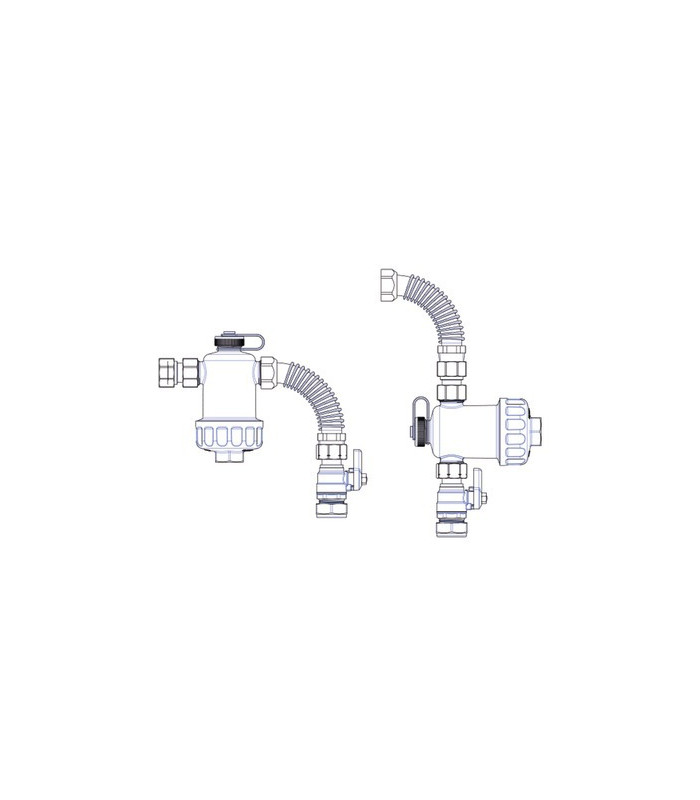

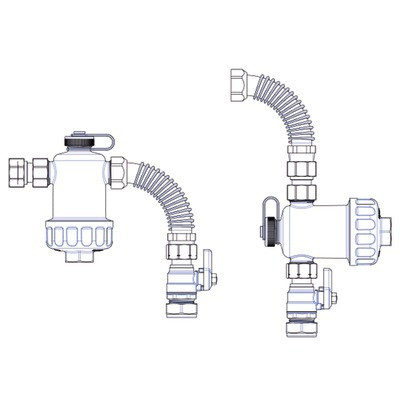

Installation: square installation with horizontal or vertical element, and right vertical element.Installation side connection: M3/4 UNI-EN-228 with spherical butterfly valve Boiler side connection: F3/4 swivel nut UNI-EN-228
Represents a great solution to solve plant problems due to particle presence, especially rust and sand.

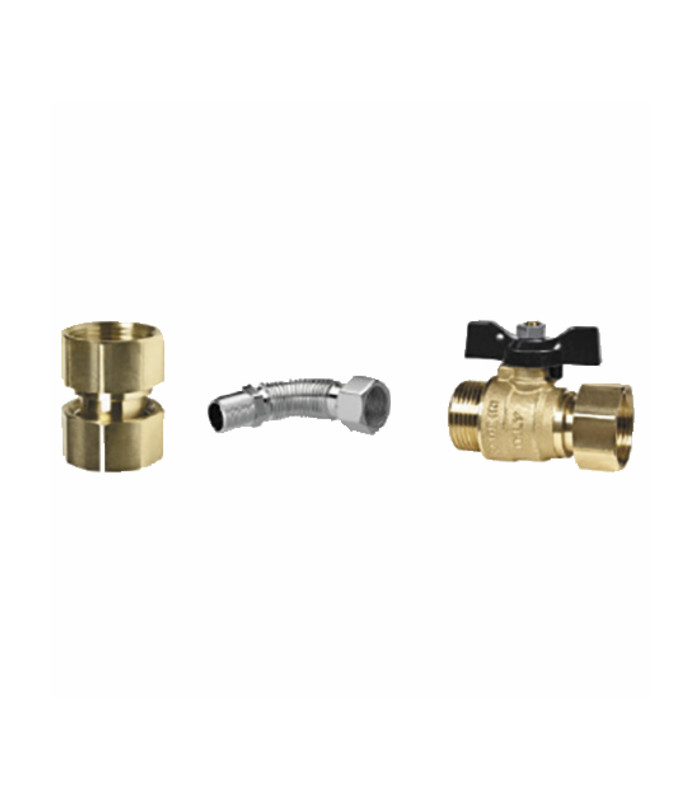

Body and filter cap made of polyamideMesh body filter made of stainless steel (AISI 304) Strength of the magnet: 11000 GaussSpherical valve element and brass swivel nutFor water and glycoled water Working pressure: max. 3 bars Temperature: 0-90 °C
