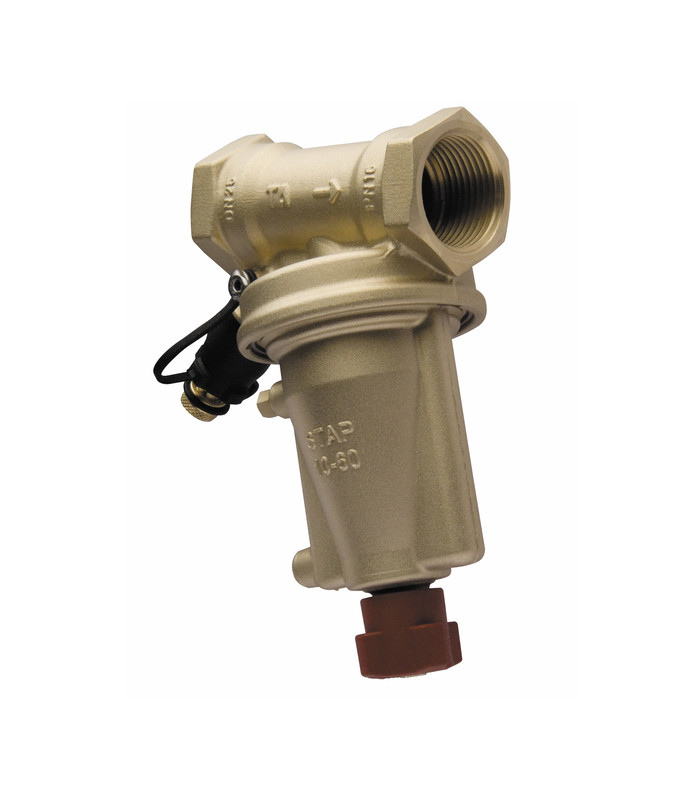

STAP controller F 3/4? - IMI : 52265-020
STAP is a differential pressure controller whose role is to maintain a constant differential pressure to ensure stable and accurate control, reduce the risk of noisy control valve operation, and facilitate balancing and commissioning. STAP?s unrivalled accuracy and compact size make it particularly suitable for use on the secondary side of heating and cooling systems. Max. working temperature: 120°C Min. working temperature: -20°C Valve body, bonnet, cone and spindles: AMETAL® O-rings: EPDM rubber Membrane: HNBR rubber Sealing (DN 25-50): EPDM O-ring
STAP is a differential pressure controller whose role is to maintain a constant differential pressure to ensure stable and accurate control, reduce the risk of noisy control valve operation, and facilitate balancing and commissioning. STAP?s unrivalled accuracy and compact size make it particularly suitable for use on the secondary side of heating and cooling systems. Max. working temperature: 120°C Min. working temperature: -20°C Valve body, bonnet, cone and spindles: AMETAL® O-rings: EPDM rubber Membrane: HNBR rubber Sealing (DN 25-50): EPDM O-ring
Range :
DN15 - 25 : 10-60kPa
DN32 - 40 : 20-80kPa
