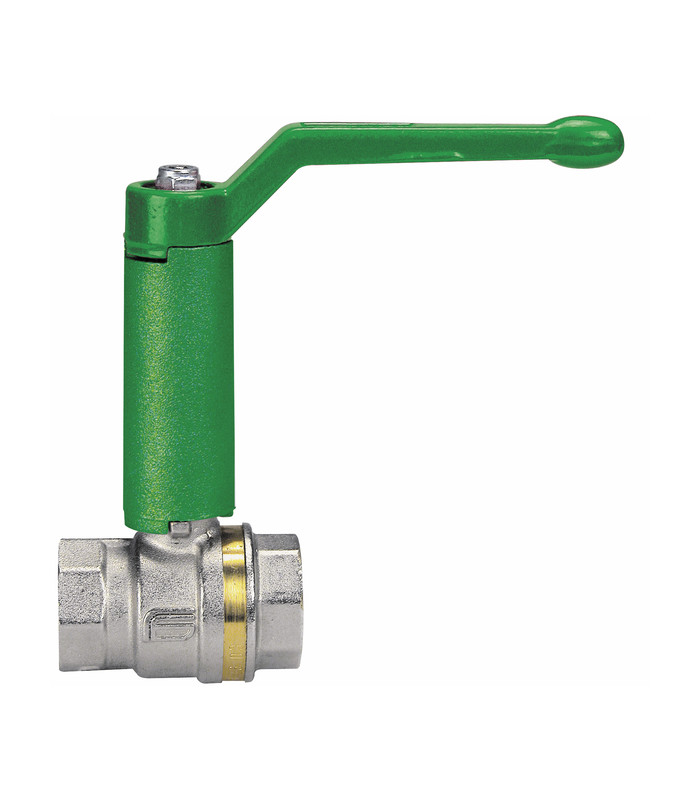

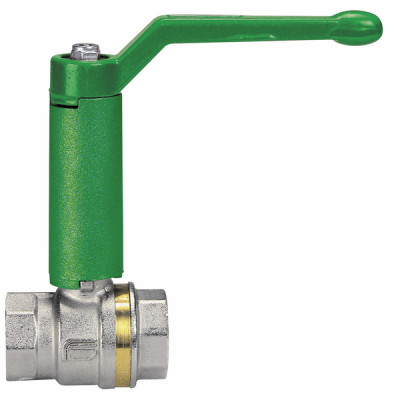

Ball valve FF with extended lever PN 40 NF 1 1/2? - EFFEBI SPA : 0884V408NF
Valve certified NF 13828 and NF 079 by the French quality control CSTB Safety and regulating valves category Certificate of Sanitary Conformity ACS Body and threaded end UNI ISO 228/1 CW617N brass manoeuvring stem, chrome-plated polished ball PTFE seal O-ring on the stem in HNBR O-ring under the stem in EPDM peroxide Green epoxy coated aluminium manoeuvring lever Fixing screw CW617N Extended lever Nickel plating outside surface treatment Working temperature -5° to 90° C with peak at 110°C max 1 hour Full bore Anti blow out stem CE 97/23/CE Used for heating and cooling water, drinking water Compressed air low pressure (less than 10 bar) for DN less than 32
