Pump TP 32-320/2-A-F-A-BQQE - GRUNDFOS : 96086675

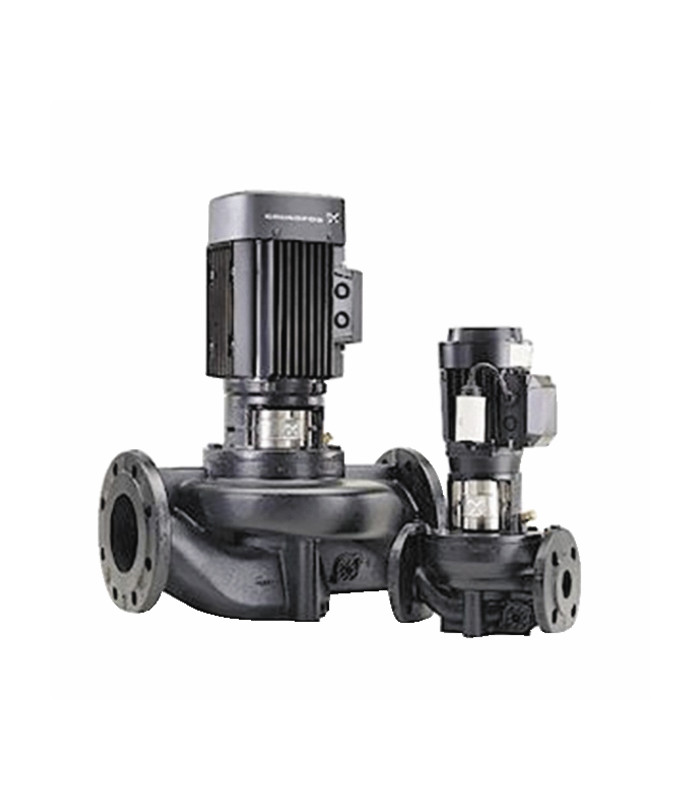

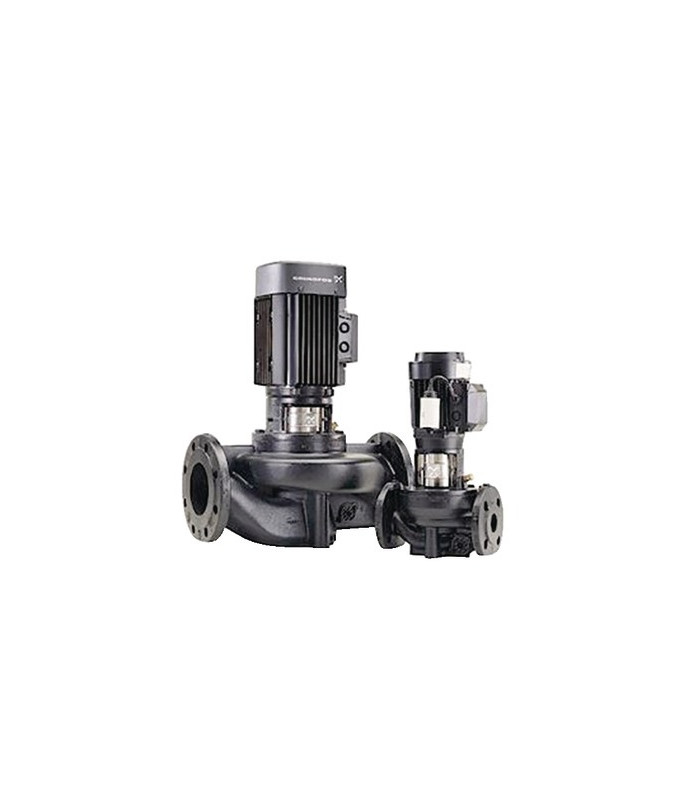

Single-cell, single-piece, volute pump with in-line suction and output ports of the same diameter. The pump is a front slide design. This makes it easy to extract the pump head (motor, head and wheel) for maintenance or repair, while the pump body remains on the piping. The pump is equipped with an unbalanced elastomer bellows seal. The mechanical seal complies with standard EN 12756. Pipework connection is via PN 10 union connections (ISO 228-1). The piping is connected by union connections PN 10 (ISO 228-1). The pump is equipped with an asynchronous ventilated motor. Liquid temperature range: -25?120°C Ambient temperature range: -30?40°C Cast iron pump body: code A Stainless steel pump body: Code I
