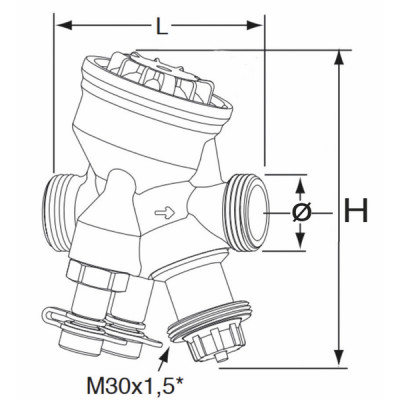

Balancing valve TA-COMPACT NF M3/4" - IMI : 52164015

Flow and differential pressure measurement available to help reduce pump energy consumption and facilitate commissioning. Pressure class: PN 16 Min. working temperature: 0°C Body: AMETAL® Cone: stainless steel Stem seal: EPDM O-ring Membrane: EPDM and HNBR O-rings: EPDM Max. working temperature: 90°C Water or neutral fluids, glycolated water. Mechanism: AMETAL® and PPS Stem: stainless steel ?p-regulator: PPS Springs: stainless steel ?pVmax 400kPa = 4b Stroke: 4mm Servomotor connection: M30 x 1.5
