FLEXORGAZ Ø112mm - ISOTIP JONCOUX : 644111

Compliant with the french norm NF DTU 24 Feb 2006 and the french norm XDD35-311.

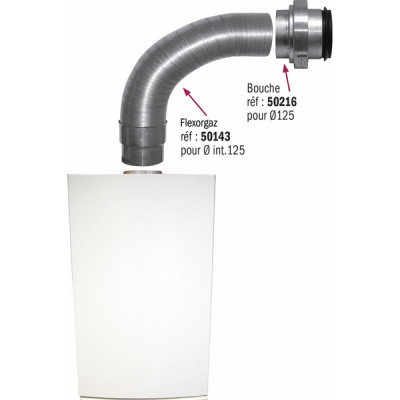

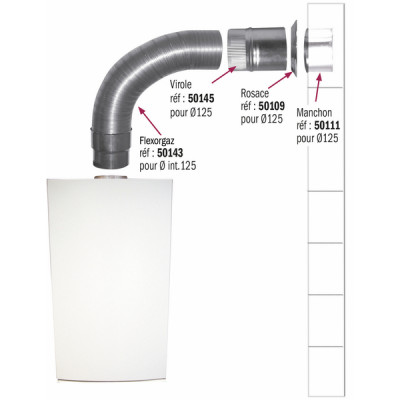

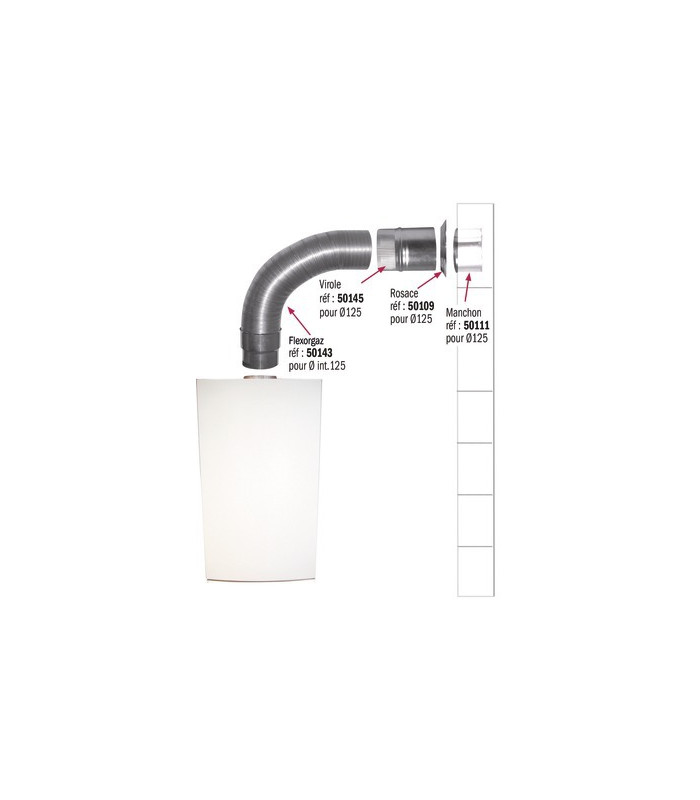

The flexible connection pipe must be socketted with an adaptation sleeve.
The flexible pipe is sold
along with the appropriate sleeve.
The male size of the sleeve is socketted in
the machine's flue collar.
In the bore size, le socketted part of the nozzle must
stay in folded position over 1.3 to 2.75 inches (5 to 7 cm).
Maximum length of the nozzle 1.5M
No more than 2 elbows (90°) maximum)
It must respect a 3° uphill position
It must be fixed in one time.

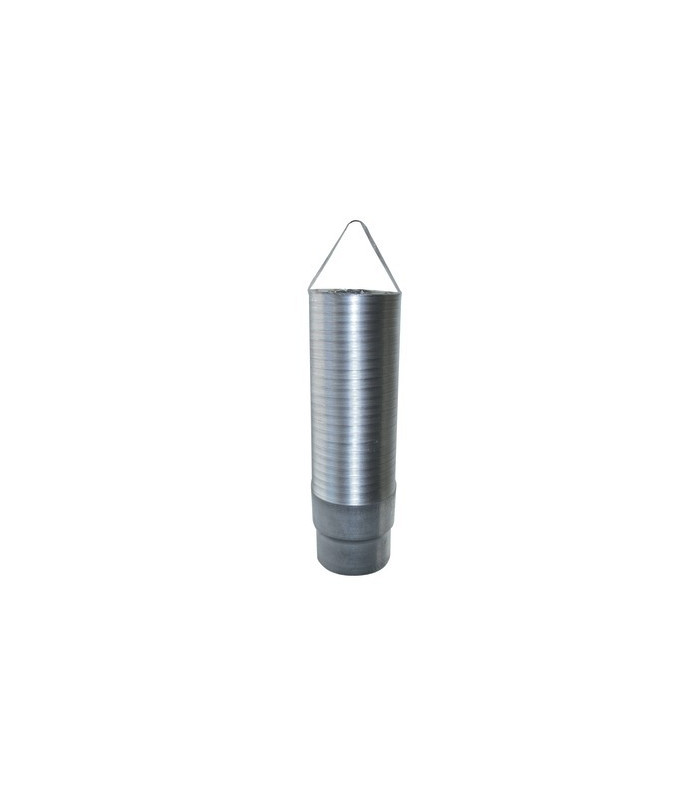

Flexorgaz equipped with an adaptation sleeve
1.5M stretchy and film wrapped.
